28mm 90 Equal Elbow End Feed Fittings 10 Pack

Product code: PHQ100044

£13.08 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

28mm 90 Equal Elbow End Feed Fittings 10 Pack details

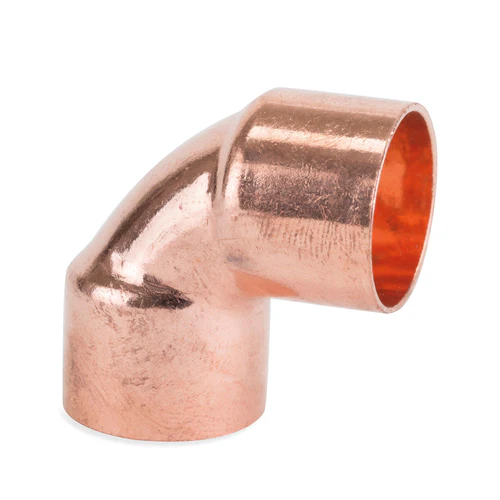

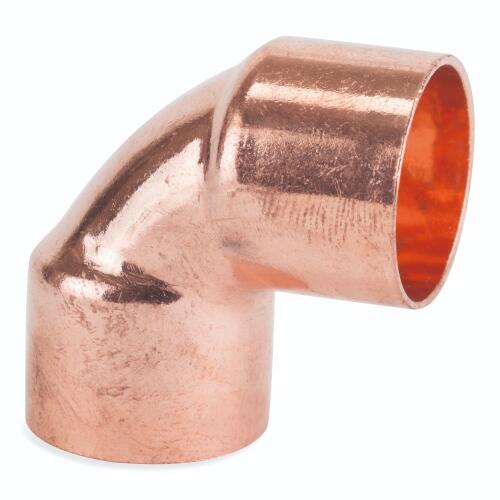

This pack of 10 Flowflex 28mm equal 90 degree end feed elbows is designed to change direction in copper pipework while maintaining the same pipe size through the joint. It is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

Manufactured from copper with a capillary end feed connection, these fittings provide a neat, compact joint when installed using the appropriate soldering method. The fittings are WRAS approved, made to BS EN 1254-1 and rated to PN16, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Backed by a 25 year guarantee, this pack is a practical choice for new installations, repairs and planned pipework alterations.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 28mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
