In stock

In stock Pipe Fitting

22mm x 15mm Fitting Reducer End Feed Fittings 25 Pack

Product Code: PHQ100038

£12.24 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 15mm Fitting Reducer End Feed Fittings 25 Pack details

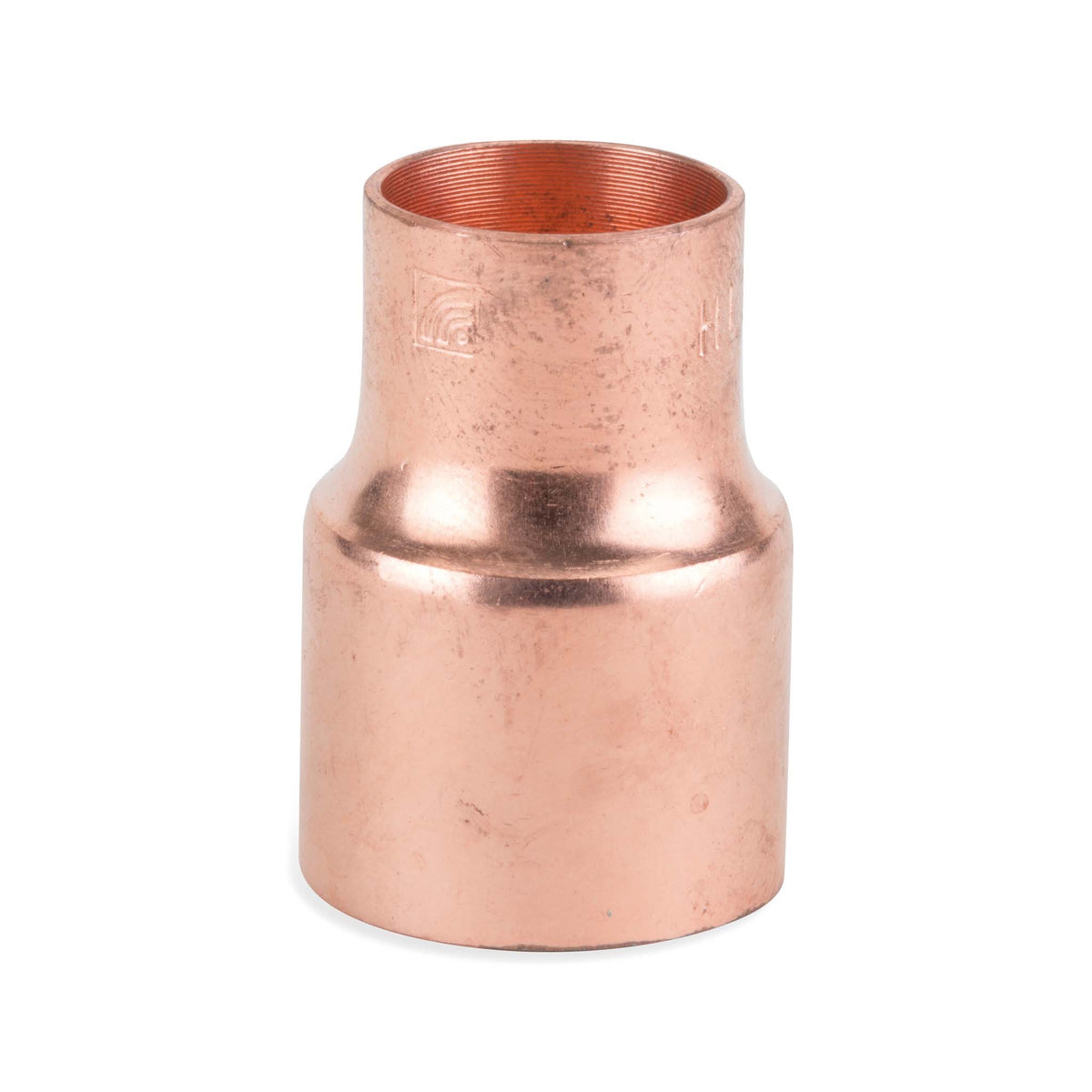

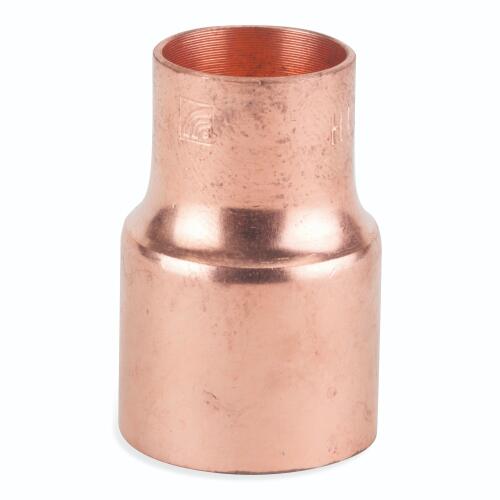

This 22mm x 15mm straight reducing end feed fitting from Flowflex is designed to join compatible copper tube while reducing the pipe size within the same run. Supplied as a 25 pack, it is suitable for gas and water applications and uses a capillary connection, meaning it is intended for soldered installation.

Manufactured in brass with a copper finish, this fitting is compatible with BS EN 1057 copper tube and meets BS EN 1254-1. It is WRAS approved, rated to PN16, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A 25 year guarantee provides added confidence for long-term use.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Reducing
Material: Brass
Type: Straight

General

Size Designation: 22mm x 15mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
