In stock Pipe Fitting

28mm x 22mm Fitting Reducer End Feed Fittings 10 Pack

Product code: PHQ100039

£8.87 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

28mm x 22mm Fitting Reducer End Feed Fittings 10 Pack details

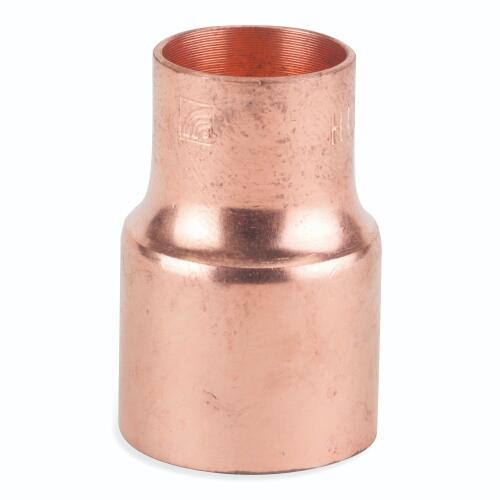

This Flowflex 28mm x 22mm reducer end feed fitting is a straight capillary fitting designed to connect and reduce compatible copper tube sizes within gas and water installations. Supplied as a 10 pack, it is suitable where pipework needs to step down from 28mm to 22mm while maintaining a neat, compact joint.

Manufactured from brass with a copper finish, this reducing fitting is compatible with BS EN 1057 copper tube and meets BS EN 1254-1. It is WRAS approved, rated to PN16, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A 25 year guarantee is included.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Reducing
Material: Brass
Type: Straight

General

Size Designation: 28mm x 22mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
