22mm 90 Street Elbow End Feed Fittings 25 Pack

Product code: PHQ100046

£19.65 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm 90 Street Elbow End Feed Fittings 25 Pack details

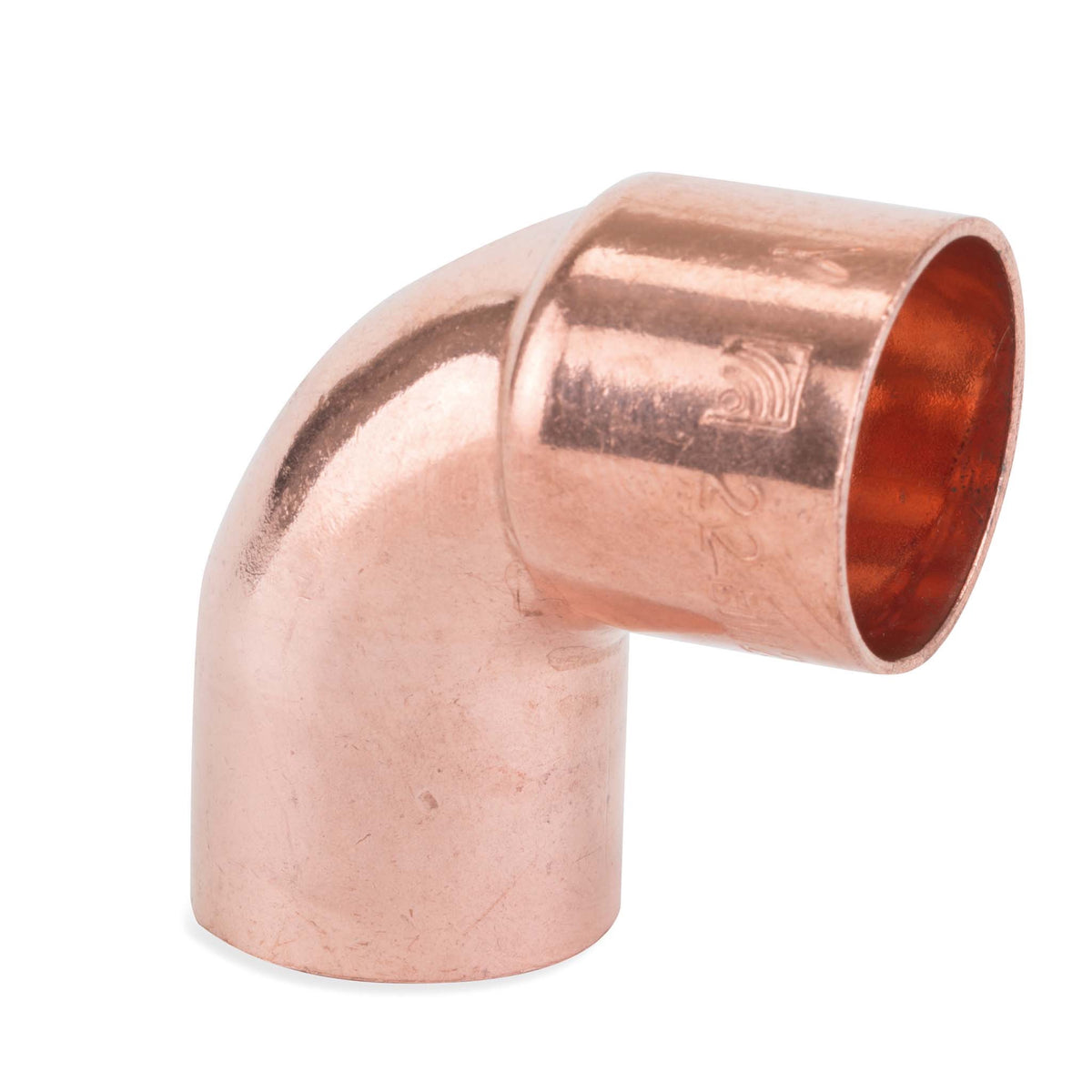

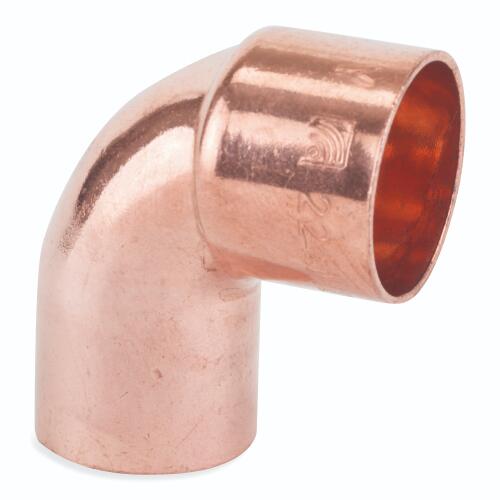

This Flowflex 22mm 90° street elbow end feed fitting is designed to change direction within compatible copper pipework runs. Supplied as a 25 pack, it is an equal capillary fitting for use with BS EN 1057 copper tube and is suitable for gas and water applications.

Manufactured in copper, this lightweight fitting provides a simple soldered joint for neat, compact installations. It is WRAS approved, made to BS EN 1254-1 and BS EN 1057 standards, and rated to PN16 with a maximum operating pressure of 16 bar and maximum operating temperature of 110°C. Backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Street Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
