22mm Equal Elbow Solder Ring Fittings 25 Pack

Product Code: PHQ100071

£25.02 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm Equal Elbow Solder Ring Fittings 25 Pack details

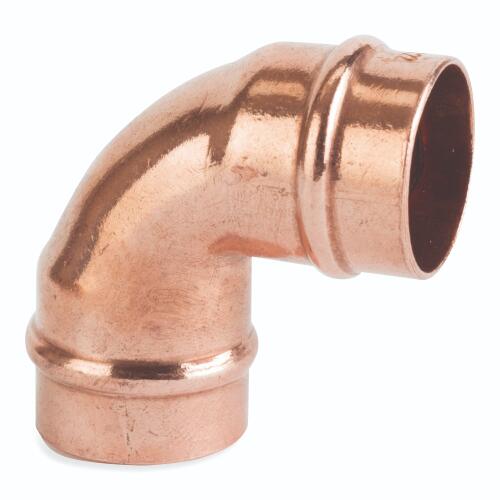

This Flowflex 22mm equal elbow solder ring fitting pack includes 25 copper elbows for creating a 90 degree change of direction in compatible copper tube systems. The equal design keeps the same 22mm size on both ends, and the capillary solder ring connection is intended for a fast, simple joint.

Suitable for water and gas applications, these fittings are compatible with copper tube manufactured to BS EN 1057 and meet BS EN 1254-1. They are lead free, WRAS approved, rated to PN16, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A practical choice for installers who need consistent copper fittings for new work, repairs or planned alterations.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
