Shower Pressure Booster Pump - Double Automatic Pack

Product Code: PHQ100120

£231.00 incl. VAT

Why choose this product?

Two automatic pumps to boost separate hot and cold feeds together. Confirm the arrangement against your system before ordering. DIY installation possible.

More information below

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product Details

The details you need before ordering

Shower Pressure Booster Pump - Double Automatic Pack details

Give both hot and cold supplies the boost your shower needs. This pack of two WRAS-approved automatic pumps offers an economical way to improve shower performance while retaining your existing plumbing system.

One pump boosts the hot feed and the other boosts the cold, serving a single outlet or multiple outlets supplied by those pipes. It provides a twin-impeller shower pump equivalent for hot-and-cold boosting, with the flexibility of two separate compact pumps. With the supplied cables connected correctly, either flow switch starts both pumps.

Each supply receives a single boost. The pumps have individual maximum flow ratings of 9 litres per minute, but these cannot be added together to predict mixed shower flow.

Brass bodies, 15mm/22mm compression fittings and one shared 12V plug-in supply make this a practical, DIY-friendly installation for a plumber or competent DIYer. Suitable applications include gravity-fed hot-and-cold systems and appropriate combi-boiler or unvented installations.

Automatic starting requires 1.5 litres per minute through an activating flow switch. Suitable negative-head or zero-head installations can use manual switching.

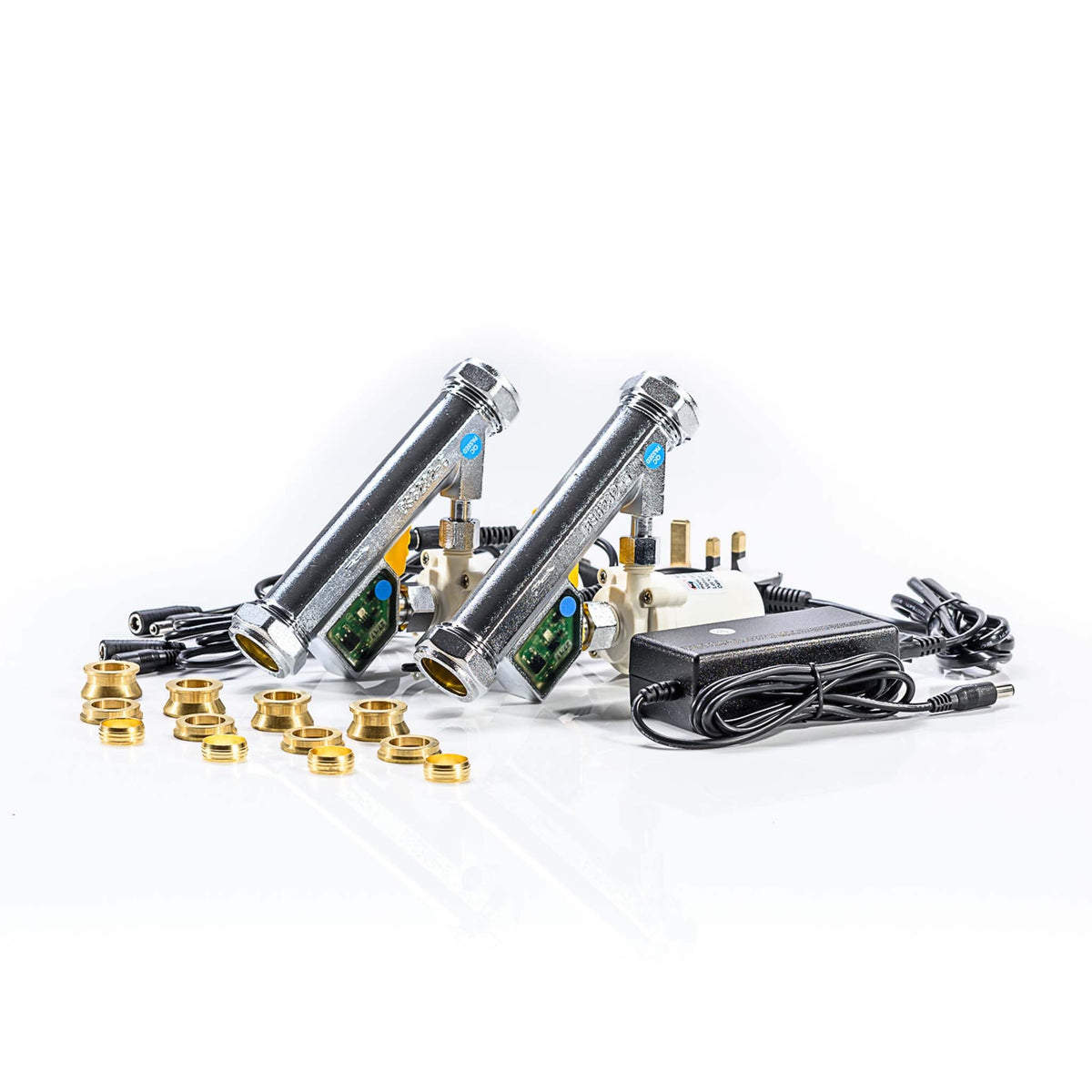

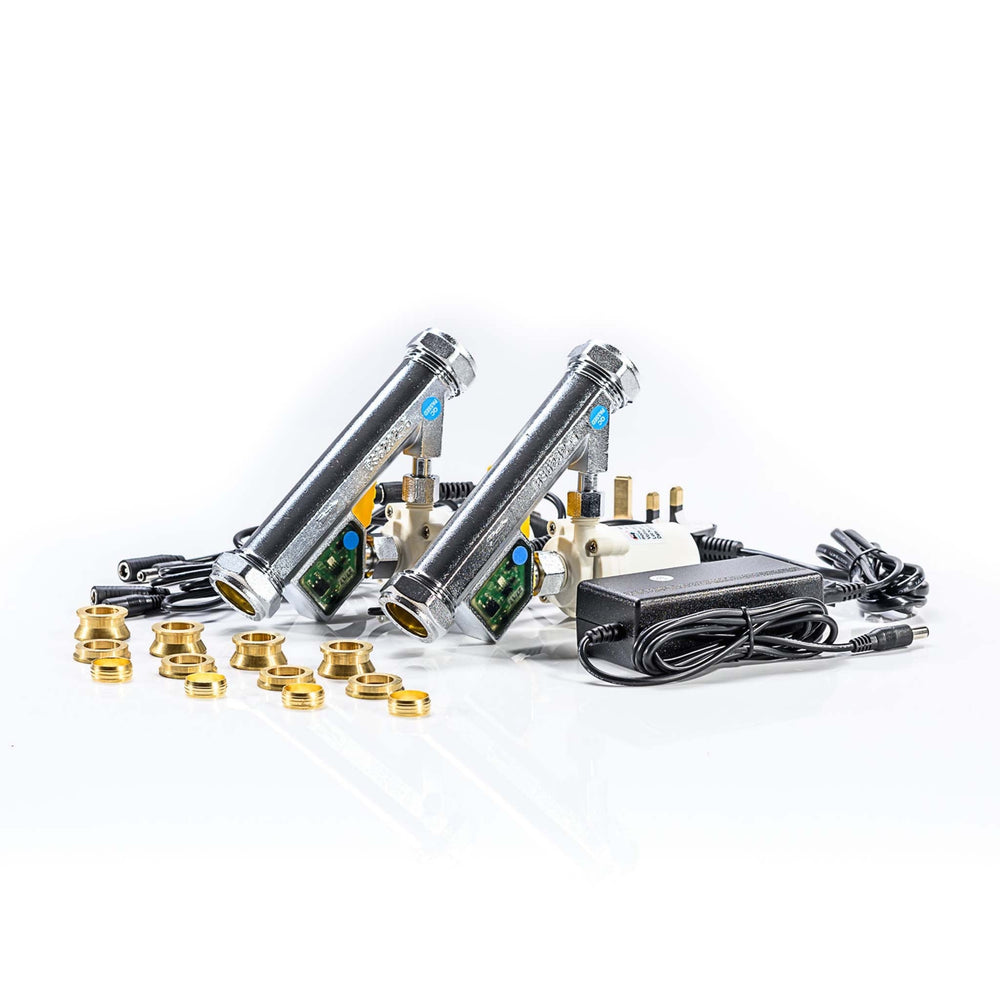

What's in the box

Two automatic pumps
One 12V 3A power supply
One three-way cable
One four-way linking cable
22mm fittings with 15mm reducing sets
Installation instructions

Specifications

Compatibility

After Combi Boiler Compatible: Yes
Electric Shower Compatible: Yes
Individual Outlet Compatible: Yes
Negative Head Pump: Yes
Positive Head Pump: Yes
Tap Booster Compatible: Yes
Whole Bathroom Compatible: Yes
Whole House Compatible: Yes

Construction

Material: Brass

Electrical

Electrical Input: 240 Volts
Electrical Output: 12 Volts
Fuse Rating (Amps): 3

General

Size Designation: 22mm

Installation

Mounting Style: Inline

Performance

Backflow Prevention: Yes
Max Flow Rate (L/min): 9
Maximum Head Pressure: 6
Maximum Sustained Pressure (bar): 4
Maximum Sustained Temperature (°C): 85
Minimum Flow Rate: 1.5
Twin Impeller: Yes

Warranty

Guarantee (Years): 2
