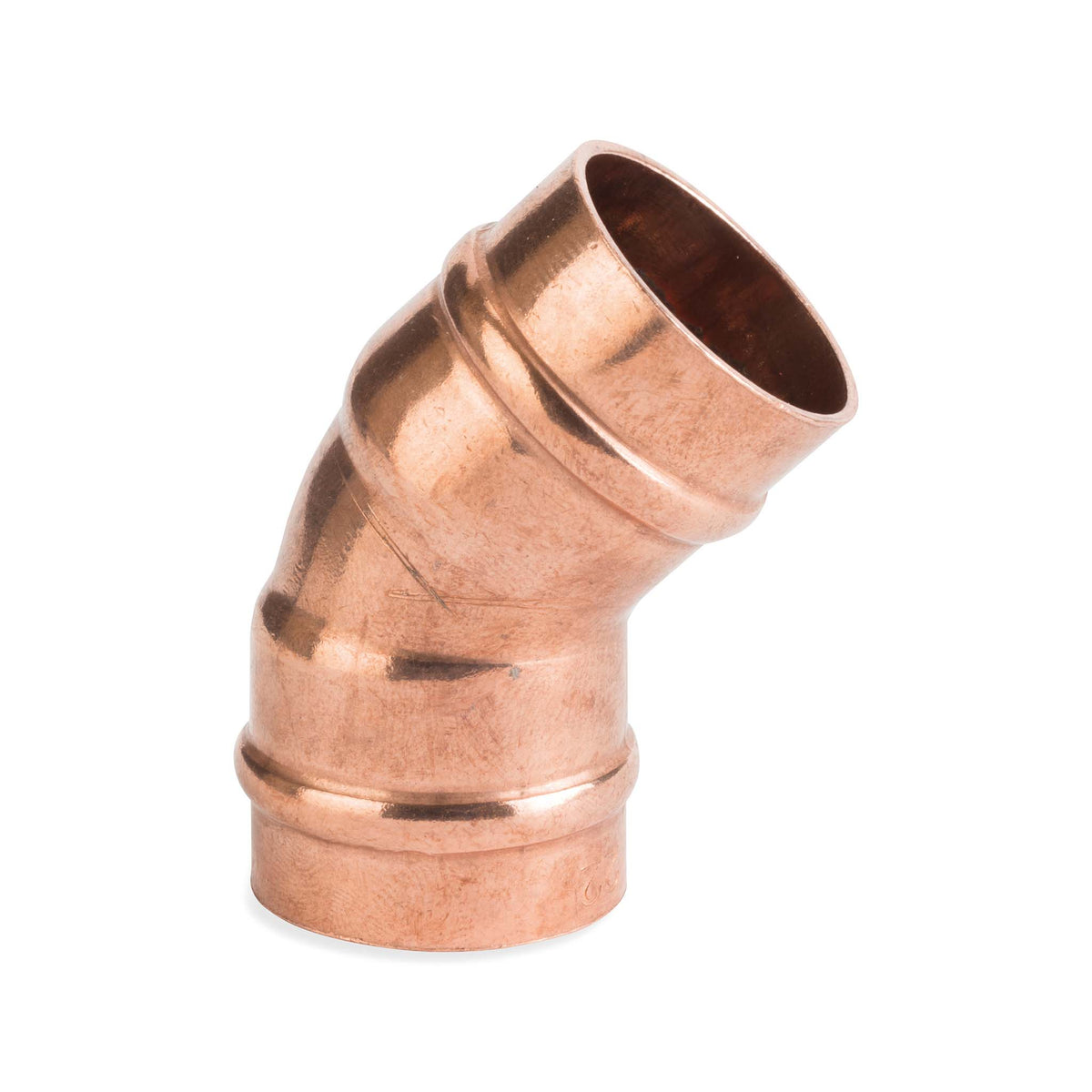

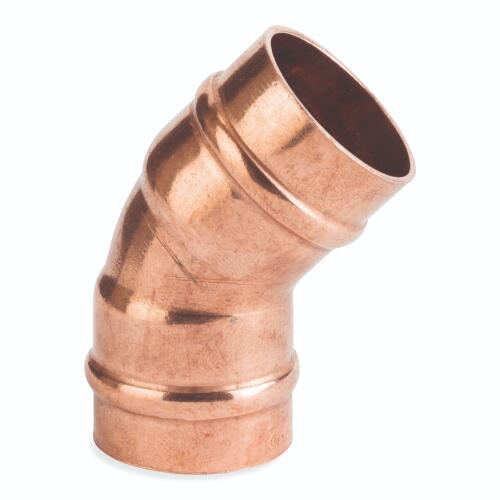

22mm 45 Elbow Solder Ring Fittings 25 Pack

Product Code: PHQ100075

£26.69 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product Details

The details you need before ordering

22mm 45 Elbow Solder Ring Fittings 25 Pack details

The Flowflex 22mm 45 degree elbow solder ring fitting is designed to change direction in compatible copper pipework while maintaining an equal 22mm connection at both ends. Supplied as a 25 pack, it is suitable for gas and water applications and is compatible with copper tube manufactured to BS EN 1057.

This brass capillary elbow includes lead free solder for a fast, simple connection during installation. It is WRAS approved, made to BS EN 1254-1 and BS EN 1057 standards, and rated up to 16 bar with a maximum operating temperature of 110 degrees C. Backed by a 25 year guarantee, it offers a dependable option for new pipework or repair work.

Specifications

Appearance

Angle: 45
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Brass
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Warranty

Guarantee (Years): 25
