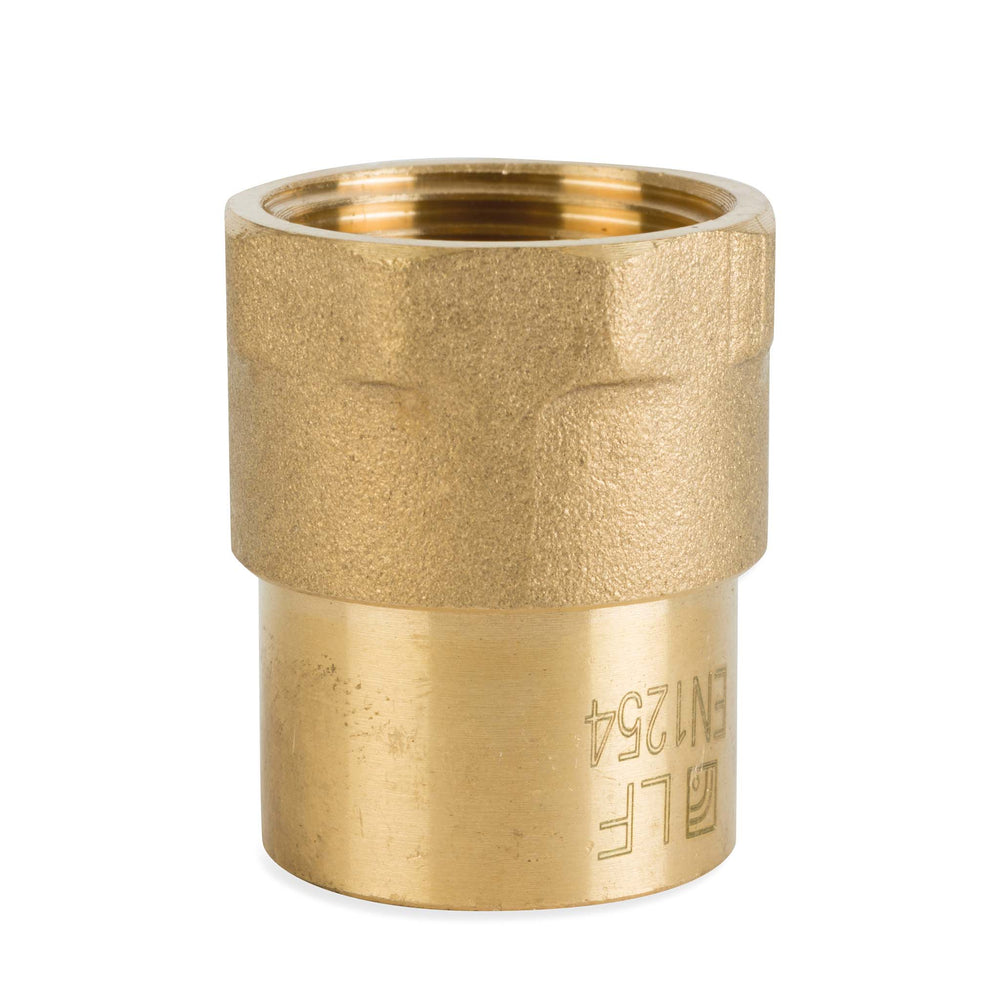

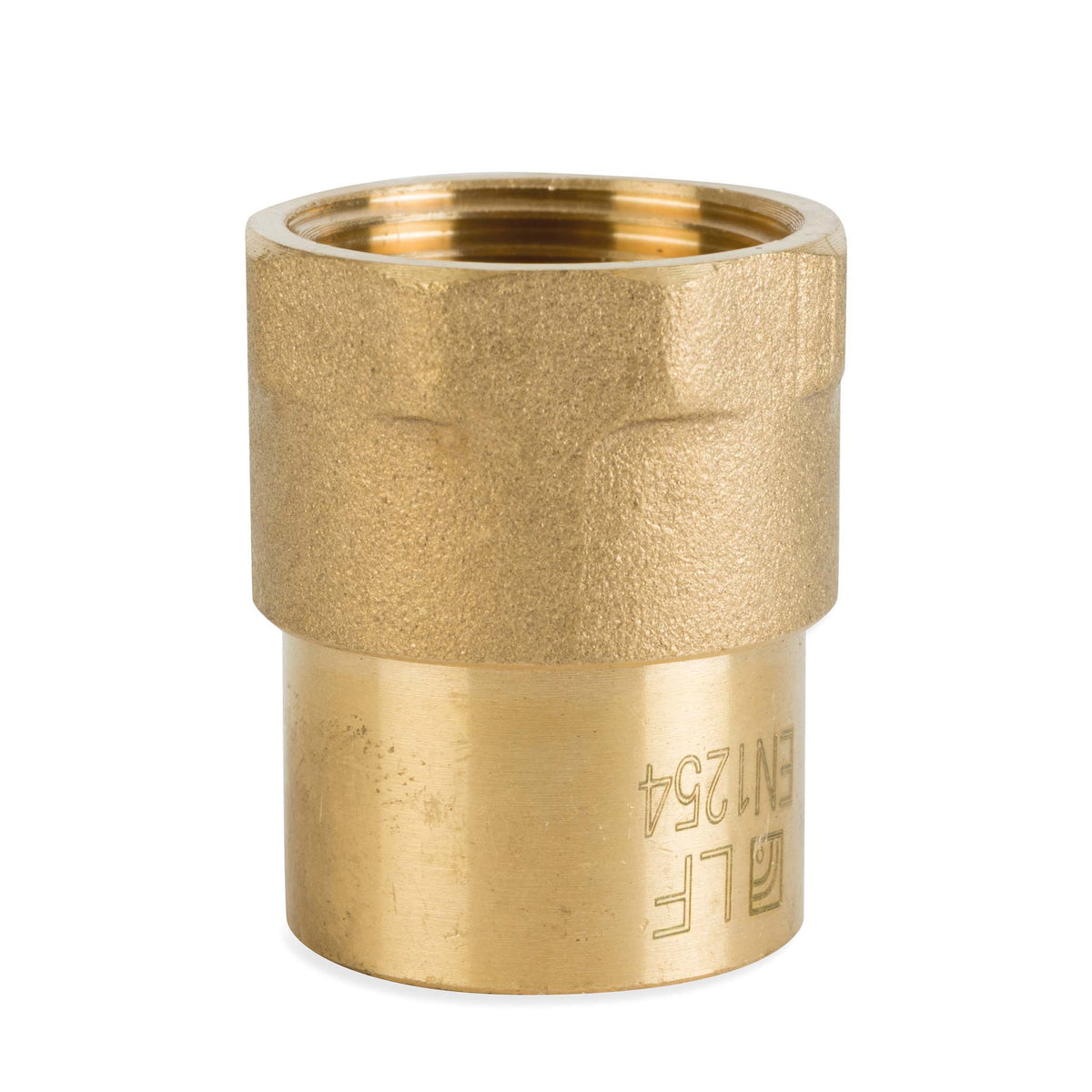

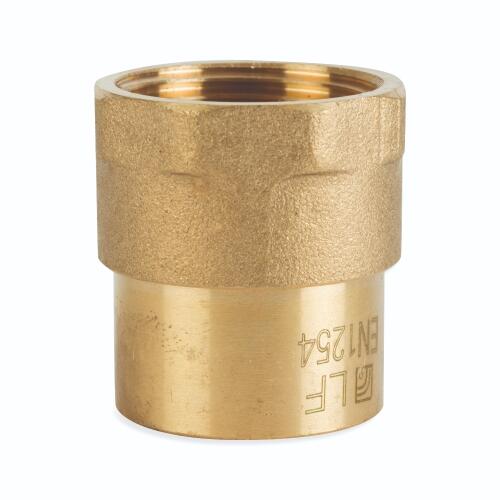

22mm x 3/4" Straight Female Adaptor Solder Ring Fittings 25 Pack

Product Code: PHQ100069

£45.32 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 3/4" Straight Female Adaptor Solder Ring Fittings 25 Pack details

Flowflex 22mm x 3/4in straight female adaptor solder ring fittings are designed to adapt compatible copper pipework to a female threaded connection in water or gas installations. This 25 pack is suitable for larger jobs or keeping stock on hand for maintenance and repair work.

Made from copper with an integral lead-free solder ring, these capillary fittings provide a fast, simple connection when used with copper tube manufactured to BS EN 1057. The fitting is an equal straight adaptor with a 22mm x 3/4in size designation, rated to PN16, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. WRAS approval and a 25 year guarantee add reassurance for suitable applications.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Copper
Type: Adaptor

General

Size Designation: 22mm x 3/4"

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
