22mm x 15mm Fitting Reducer Solder Ring Fittings 25 Pack

Product Code: PHQ100064

£18.75 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 15mm Fitting Reducer Solder Ring Fittings 25 Pack details

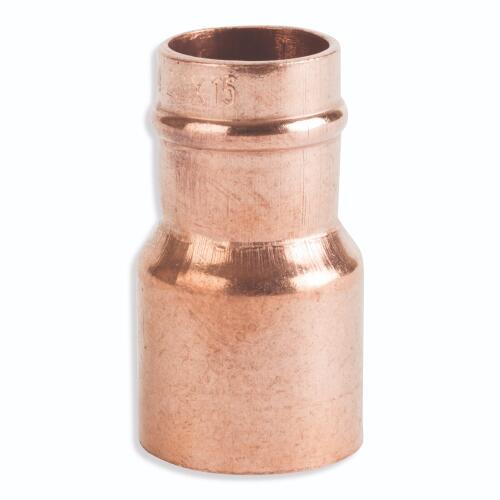

This Flowflex 22mm x 15mm reducer solder ring fitting is a straight capillary fitting designed to connect and reduce between two copper tube sizes in water or gas installations. Supplied as a 25 pack, it is compatible with copper tube manufactured to BS EN 1057 and made for fast, simple connection.

The fitting is manufactured from brass with a copper finish and includes lead free solder within the fitting to support quicker jointing on site. It is classed as a reducing fitting, WRAS approved, and made to BS EN 1254-1. Rated to PN16, with a maximum operating pressure of 16 bar and maximum operating temperature of 110°C, it is backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Reducing
Material: Brass
Type: Straight

General

Size Designation: 22mm x 15mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
