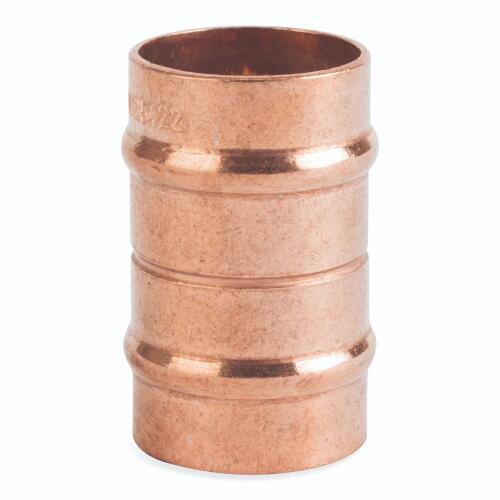

22mm Straight Coupling Solder Ring Fittings 25 Pack

Product Code: PHQ100059

£20.50 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm Straight Coupling Solder Ring Fittings 25 Pack details

The Flowflex 22mm straight coupling solder ring fitting is designed to join two equal 22mm copper tubes in a straight run. Supplied as a 25 pack, it is a practical choice for larger installations, maintenance work or keeping suitable stock on hand for general plumbing tasks.

This capillary fitting is compatible with copper tube manufactured to BS EN 1057 and is suitable for water and gas applications. The pre-loaded lead-free solder ring helps provide a fast, simple connection when installed correctly. It is WRAS approved, rated to PN16, with a maximum operating pressure of 16 bar and a maximum operating temperature of 110 degrees C. Guaranteed for 25 years.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Brass
Type: Straight

General

Size Designation: 22mm

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
