22mm Street Elbow Solder Ring Fittings 25 Pack

Product code: PHQ100073

£25.58 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm Street Elbow Solder Ring Fittings 25 Pack details

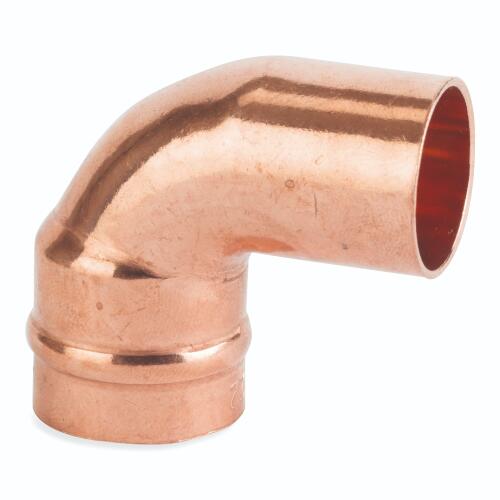

Flowflex 22mm street elbow solder ring fittings are designed to create a 90 degree change of direction in compatible copper pipework. This 25 pack is suitable for water and gas applications, using a capillary connection with pre-loaded lead free solder to support a fast, simple installation.

Each equal fitting has a 22mm size designation, brass construction and copper finish. It is compatible with copper tube manufactured to BS EN 1057 and meets BS EN 1254-1. WRAS approval supports use on suitable water systems, while the fitting is rated to PN16 with a maximum operating pressure of 16 bar and maximum operating temperature of 110 degrees C. Backed by a 25 year guarantee.

Technical specifications

Appearance

Angle: 90
Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: Solder Ring
Connection Type: Capillary
Equal or Reducing: Equal
Material: Brass
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Street Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
