In stock Shower Pump

Water Pressure Booster Pump - Automatic & Manual Pack

Product Code: PHQ100119

£176.00 incl. VAT

Why choose this product?

An automatic pump and a linked second pump work together to provide an extra boost on the same supply. This is a different arrangement from boosting hot and cold separately. DIY installation possible.

More information below

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product Details

The details you need before ordering

Water Pressure Booster Pump - Automatic & Manual Pack details

Extra pressure for a more satisfying shower. This economical pack of two WRAS-approved pumps gives one hot or cold supply a double boost, helping improve a single outlet or multiple outlets supplied by that pipe.

Installed in series, the pumps work together to increase pressure, with a maximum flow rating of 9 litres per minute for the arrangement. The second pump adds pressure rather than doubling the flow rating.

An automatic pump controls the linked second pump, so both start together without separate switching. Although the second pump is described as “manual”, it operates automatically in this linked arrangement.

Particularly useful for boosting weak gravity-fed hot water against stronger mains cold water, the pack also suits appropriate electric-shower and combi-boiler installations. Compact brass bodies, 15mm/22mm compression fittings and a shared 12V plug-in supply provide a straightforward retrofit for a plumber or competent DIYer.

Automatic starting requires 1.5 litres per minute of natural flow. Suitable negative-head or zero-head installations can use manual switching.

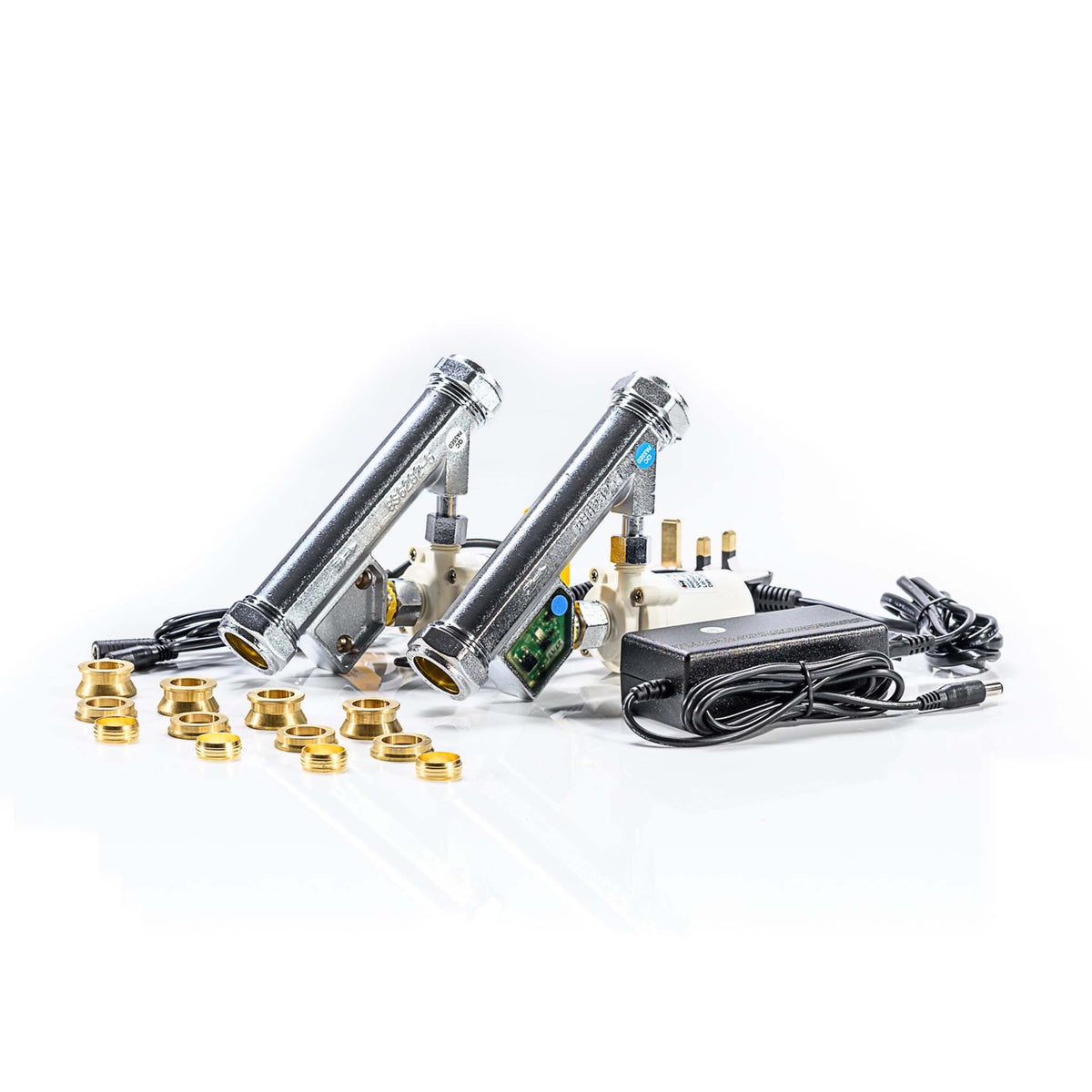

What's in the box

One automatic pump
One manual/linked pump
One 12V 3A power supply
One three-way linking cable
22mm fittings with 15mm reducing sets
Installation instructions

Specifications

Compatibility

After Combi Boiler Compatible: Yes
Electric Shower Compatible: Yes
Individual Outlet Compatible: Yes
Mains Inlet Compatible: Yes
Negative Head Pump: Yes
Positive Head Pump: Yes
Tap Booster Compatible: Yes
Whole Bathroom Compatible: Yes
Whole House Compatible: Yes

Construction

Material: Brass

Electrical

Electrical Input: 240 Volts
Electrical Output: 12 Volts
Fuse Rating (Amps): 3

General

Size Designation: 22mm

Installation

Mounting Style: Inline

Performance

Backflow Prevention: Yes
Max Flow Rate (L/min): 9
Maximum Head Pressure: 6
Maximum Sustained Pressure (bar): 4
Maximum Sustained Temperature (°C): 85
Minimum Flow Rate: 1.5
Single Impeller: Yes

Warranty

Guarantee (Years): 2
