22 x 15mm 90 Reducing Elbow - Compression Fittings - 10 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
22 x 15mm 90 Reducing Elbow - Compression Fittings - 10 Pack details

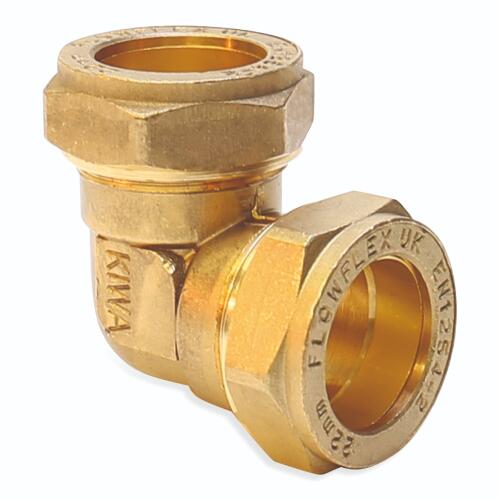

This 22 x 15mm 90 degree reducing elbow is designed for connecting copper pipes of different sizes using a compression method. It provides a secure, leak-tight join without the need for heat or solder, enabling straightforward installation and removal. The fitting is precision engineered from brass, delivering robust corrosion resistance and consistent results under operating pressures up to 16 bar and temperatures up to 110C.
Compatible with copper pipes manufactured to BS EN 1057, it conforms to BS EN 1254-2 standards, and is approved by WRAS for use in potable water systems. This elbow is suited to both water and gas applications in domestic and commercial environments. Supplied in a pack of 10, it supports ongoing maintenance as well as permanent installations. It comes with a 25 year manufacturer guarantee for long term performance and reliability.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,WRAS Approved,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Angle
- 90
- Applications
- Gas,Water
- Colour
- Brass
- Connection Type
- Compression
- Equal/Reducing
- Reducing
- Finish
- Brass
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22 x 15mm
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Elbow
- Type
- Elbow
- WRAS Approved
- Yes
