22mm DZR Drain Off Elbow - Compression Fittings - 10 Pack

Product Code: 2831-3763

£40.70 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm DZR Drain Off Elbow - Compression Fittings - 10 Pack details

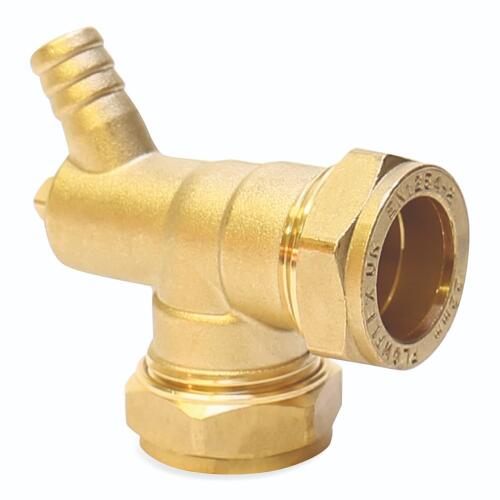

The Flowflex 22mm DZR drain off elbow is a compression pipe fitting designed to change direction within compatible pipework while providing a drain off point. Supplied as a 10 pack, it is suitable for gas and water applications and is compatible with copper tube manufactured to BS EN 1057.

Manufactured to BS EN 1254 and WRAS approved, this equal elbow has a brass finish and brass construction. Compression connections provide a mechanical joint without heat, which can be useful where access, maintenance or future disassembly may be required. Maximum operating pressure is 16 bar, with a maximum operating temperature of 110°C. Backed by a 25 year guarantee.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-2, BS EN 1057
WRAS Approved: Yes

Construction

Connection Type: Compression
Equal or Reducing: Equal
Material: Brass
Type: Elbow

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
