In stock

In stock Pipe Fitting

22mm Long Radius Street Elbow - End Feed Fittings - 10 Pack

Product code: 2329-2724

£11.57 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm Long Radius Street Elbow - End Feed Fittings - 10 Pack details

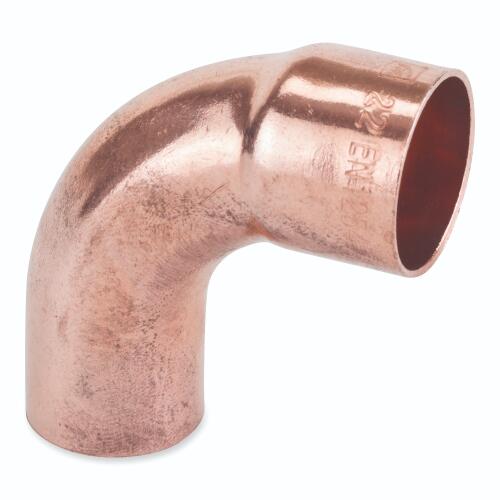

This 22mm long radius street elbow end feed fitting from Flowflex is designed to change the direction of compatible copper pipework in gas and water installations. Supplied as a 10 pack, it suits BS EN 1057 copper tube and uses a capillary connection for a neat, compact soldered joint.

Manufactured in copper, this elbow has a long radius configuration where a smoother change of direction is required within the pipe run. It is suitable for operating pressures up to 16 bar and temperatures up to 110°C. Applicable standards listed are BS EN 1254-1 and BS EN 1057. Guaranteed for 25 years.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Material: Copper
Type: Elbow

Dimensions

Depth: 55
Height: 24
Width: 52

General

Size Designation: 22mm

Installation

Configuration: Elbow

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
