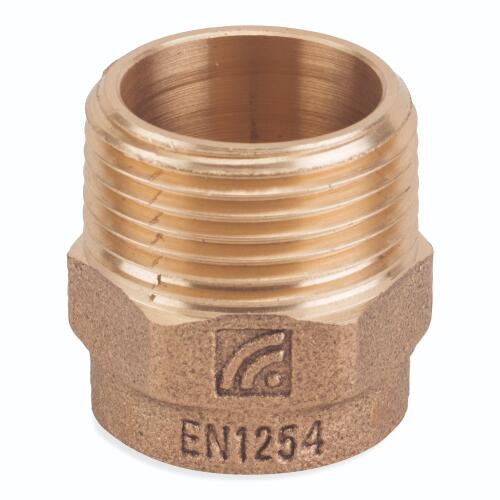

22mm x 1" Male Taper Adaptor - End Feed Fittings - 10 Pack

Product code: 5704-6032

£21.95 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm x 1" Male Taper Adaptor - End Feed Fittings - 10 Pack details

This Flowflex 22mm x 1in male taper adaptor is an end feed pipe fitting designed to adapt from 22mm copper tube to a 1in male tapered threaded connection. Supplied as a 10 pack, it is suitable for gas and water applications and is compatible with BS EN 1057 copper tube.

Made from brass with a straight, reducing configuration, this capillary fitting provides a compact joint for soldered installations. It is WRAS approved, manufactured to BS EN 1254-1, and rated for a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. A 25 year guarantee is included.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Reducing
Material: Brass
Type: Straight

General

Size Designation: 22mm x 1"

Installation

Configuration: Straight

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
