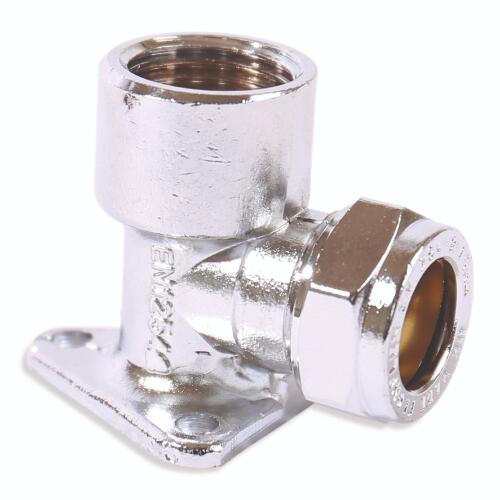

22mm x 3/4" Wallplate Elbow Chrome Plated - Compression Fittings - 10 Pack
Estimated delivery: in 1 working days
Order before the daily cut-off for this estimate.
Business days only. Weekend and post-cut-off orders are processed the next working day.Product information
The details you need before ordering
22mm x 3/4" Wallplate Elbow Chrome Plated - Compression Fittings - 10 Pack details
This wallplate elbow delivers a strong and secure compression connection between 22mm copper pipe and a 3/4 inch threaded outlet for mounting fixtures to solid surfaces. The fitting is engineered from high strength brass and finished in chrome for corrosion resistance in demanding water and gas installations.
It is compatible with copper tube made to BS EN 1057 and makes use of a solder-free compression joint for speedy, reliable assembly and service access. Certified to BS EN 1254-2, it is suitable for a maximum working pressure of 16 bar and can handle sustained temperatures up to 110°C.
Supplied as a pack of ten, the elbow comes with a 25 year manufacturer's guarantee for proven long-term performance on commercial and domestic projects.
Key features
- Manufactured to BS EN 1254,Compatible With Copper Tube Manufactured to BS EN 1057,Guaranteed for 25 years
Technical specifications
Unless stated, measurements are in millimetres (mm).
- Applications
- Gas,Water
- Colour
- Brass
- Connection Type
- Compression
- Finish
- Brass
- Manufacturer Guarantee
- 25 Years
- Material
- Brass
- Max Operating Pressure
- 16 Bar
- Max Operating Temperature
- 110C
- Pack Size
- 10
- Size Designation
- 22mm x 3/4"
- Standards
- BS EN 1254-2, BS EN 1057
- Style
- Elbow
- Type
- Elbow
