28mm Brass Olive DZR - Compression Fittings - 100 Pack

Product Code: 9456-4643

£16.16 incl. VAT

Free delivery

Delivery timing is shown clearly before checkout.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

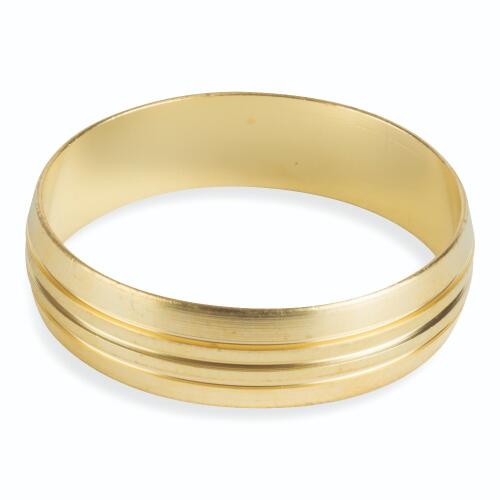

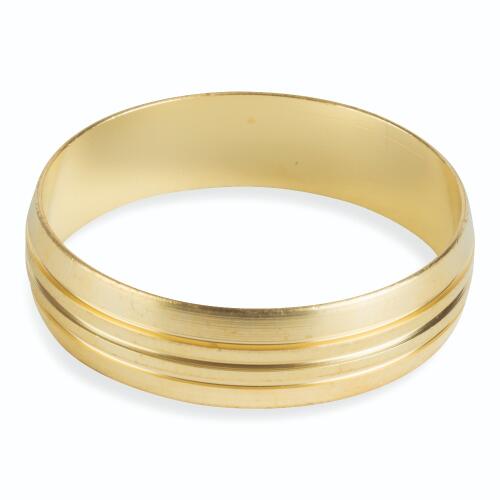

28mm Brass Olive DZR - Compression Fittings - 100 Pack details

This 28mm brass DZR olive gives you the sealing ring needed to make up compression joints on compatible 28mm copper tube, making it a practical choice for gas and water work. Supplied in a 100 pack, it is well suited to stocked vans, maintenance jobs and larger site work where having the right size ready to hand keeps the job moving.

Made to BS EN 1254-2 and compatible with copper tube manufactured to BS EN 1057, it offers a compression connection with a maximum operating pressure of 16 bar and a maximum operating temperature of 110°C. Backed by a 25 year guarantee, it is a dependable option when you need consistent 28mm olives for ongoing installation and repair work.

Technical specifications

Appearance

Colour: Brass

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-2, BS EN 1057

Construction

Connection Type: Compression
Material: Brass
Type: Olive

General

Size Designation: 28mm

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
