22mm Stop End End Feed Fittings 25 Pack

Product Code: PHQ100057

£11.66 incl. VAT

Estimated delivery: in 1 working day

Order before the daily cut-off for this estimate.

Live stockAvailability shown now

30-day returnsStraightforward returns

Product supportHelp before you buy

Not sure this is the right product? Chat to our product team

Product information

The details you need before ordering

22mm Stop End End Feed Fittings 25 Pack details

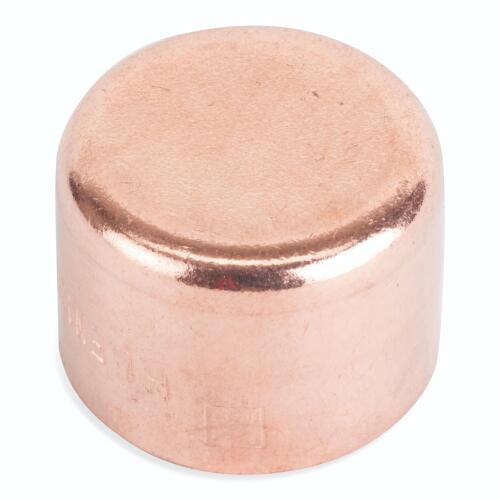

This Flowflex 22mm stop end end feed fitting is designed to terminate compatible 22mm copper tube in gas and water installations. Supplied as a 25 pack, it uses a capillary connection for a neat, compact soldered joint and is suitable for use with BS EN 1057 copper tube.

Manufactured in brass with a copper finish, this equal stop end is WRAS approved and made to BS EN 1254-1 and BS EN 1057 standards. It has a maximum operating pressure of 16 bar, a maximum operating temperature of 110°C, and a PN16 pressure rating. A 25 year guarantee provides added confidence for long-term installation work.

Technical specifications

Appearance

Colour: Copper

Compatibility

Applications: Gas, Water

Compliance

Applicable Standards: BS EN 1254-1, BS EN 1057
WRAS Approved: Yes

Construction

Capillary Connection Type: End Feed
Connection Type: Capillary
Equal or Reducing: Equal
Material: Brass
Type: Stop End

General

Size Designation: 22mm

Performance

Max Operating Pressure (bar): 16
Max Operating Temperature (°C): 110
Pressure Rating: PN16

Shipping

Order Cut Off Time: 1200
Premium Delivery Days: 1
Standard Delivery Days: 2

Warranty

Guarantee (Years): 25
